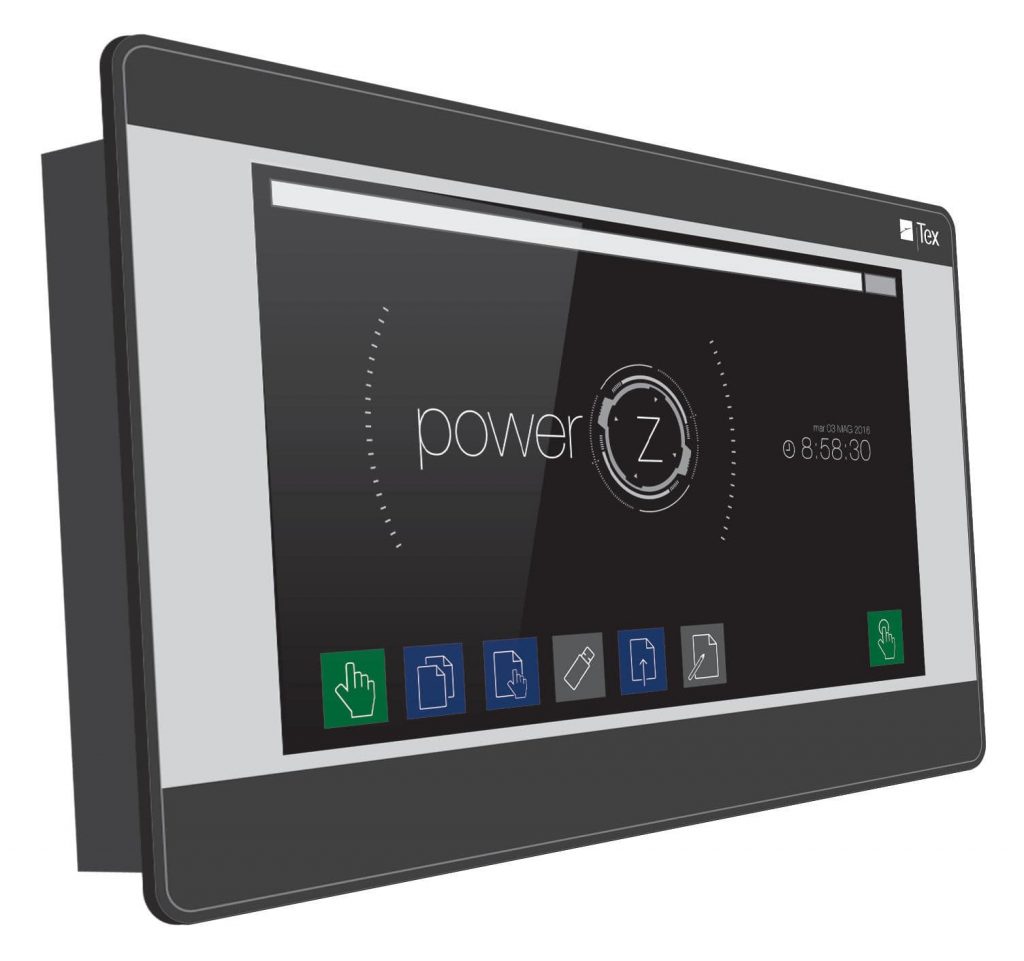

Power Z

Power Supply 24Vdc
7″ color display
Touch screen
Dimensions 243x146x45 (LxHxP in mm)
1 MB sram
8 MB flash on microcontroller
10 digital inputs 24Vdc
8 digital outputs 24Vdc 0,35A protected
2 digital outputs 24 Vdc 0.05 A
3 analog inputs 0.5V
1 RS232 port (RS485 optional)
1 ETHERNET port
1 USB 2.0 on rear side (optional on front panel)
1 line driver encoder 5V (on request Push Pull)
1 analog output +/-10V
3 PWM or STEP/DIR output (single line signals, not interpolated axes)
1 Can open port for I/O expansion
1 SPI Port for INT-SPI (16I+16O expansion board)
